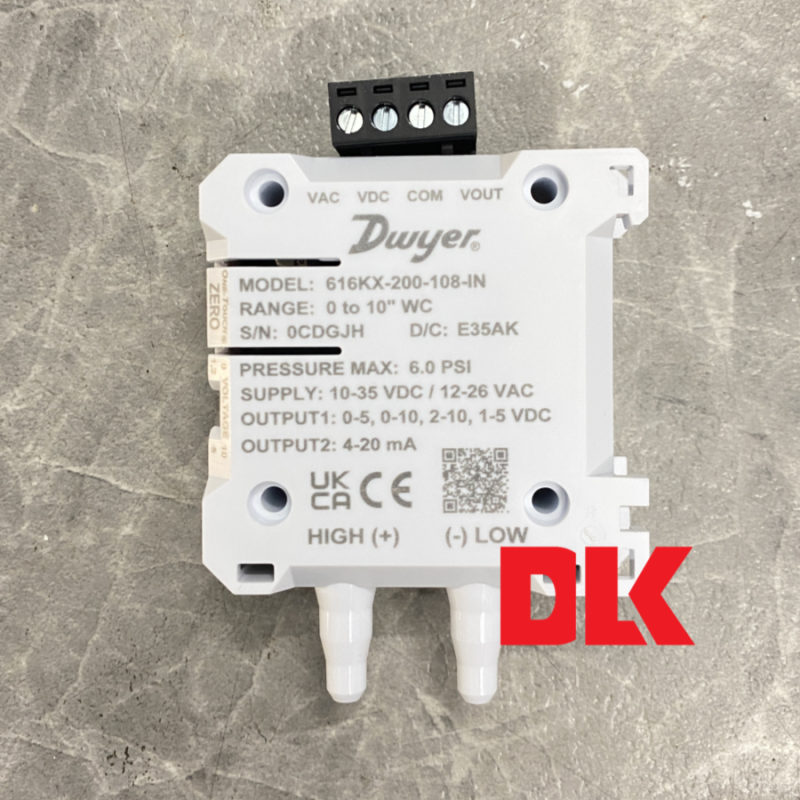

Detailed Specifications
|
Brand |
DWYER (USA) |
|
Service |
Air and non-combustible, compatible gases |
|
Accuracy |
±0.25% Full Scale |
|
Pressure Limits |
Max. 2 psig (ranges ≤ 5" w.c.); 10 psig (higher ranges) |
|
Temperature Limits |
0 to 140°F (-17.8 to 60°C) |
|
Output Signal |
4-20 mA (2-wire); 0-5 V or 0-10 V (3-wire) |
|
Power Requirements |
10-35 VDC (current); 10-35 VDC or 10-29 VAC (voltage) |
|
Process Connections |
Barbed for 1/8" and 3/16" ID tubing |
|
Housing Material |
ABS Plastic |
|
Zero Calibration |
Integral push button Zero |
