Current Transformers Series CCT40-50

Current Transformers Series CCT40-50 - Series CCT60-70

Source of Supply: Directly imported by DLK TRADING SERVICE COMPANY LIMITED ⭐⭐⭐⭐⭐ Product Line: SERIES CCT40-50 - SERIES CCT60-70✅ Certifications: 💨 For Use: Khí ; Chất Lỏng⚙️ Product Type: Bộ chuyển đổi🔧 Functions: Bộ điều khiển

ContactContact us for advice and quotes

Product information

🏭 Hãng sản xuất: DWYEROMEGA - Thương hiệu Mỹ

⭐ Dòng sản phẩm: SERIES CCT40-50 - SERIES CCT60-70 - Nhà máy tại: Mỹ

✅ Chứng nhận: 💨 Dùng cho: Khí ; Chất Lỏng

⚙️ Loại sản phẩm: Bộ chuyển đổi

🔧 Chức năng: Bộ điều khiển

💵 Thuế VAT: Áp dụng mức 8% hoặc 10%, tùy theo chính sách hiện hành.
💰 Đơn vị tiền tệ: VND (Việt Nam Đồng).

Tags:

🚚 Direct Importer by DLK TRADING SERVICE COMPANY LIMITED .
✅ Quality : 100% Brand New , genuine products with complete import documentation.
🛠️ Warranty : 12 Months (optional 36 Months ).
📞 Phone : 0937972339

Technical characteristics
Name of the product
Standard technical document

SERIES CCT40-50 - SERIES CCT60-70	CURRENT TRANSFORMERS TRUE RMS CURRENT TRANSFORMERS
Specification	Description
Series CCT40-50 & CCT60-70	Current Transformers (Split Core)
Service	AC current.
Accuracy	±1% from 10% to 130% of rated current (CCT40-50); ±1% from 5% to 100% of rated current (CCT60-70).
Frequency	50/60 Hz.
Output	0-5 AAC (CCT40-50); 0-0.333 VAC, 0-1 VAC, 0-5 VAC, 0-10 VAC (CCT60-70)
Temperature Limits	-4 to 140°F (-20 to 60°C).
Insulation Voltage	600 VAC.
Max. Primary Voltage	600 VAC (insulated conductor).
Construction	Epoxy encapsulated.
Lead Wire Length	CCT40-50: 8 ft (2.4 m); CCT60-70: 5 ft (1.5 m)
Lead Wire Type	CCT40-50: Twisted-pair, 600V, #18 AWG; CCT60-70: 22AWG, THHN, UL 1015
Agency Approvals	RoHS, CE (CCT40-50), UL, cUL Recognized (CCT60-70).
Window Size	CCT40-50 (0.85X1.25"); CCT60-70(2.06x2.40")

SERIES CCT40-50 - SERIES CCT60-70_MANUAL_DWYER_DLK.pdf

Current Transformers Series CCT40-50 - Series CCT60-70

Current Transformers Series CCT40-50 - Series CCT60-70

Product information

Zener Barriers Series MTL7706-7787

Electromechanical Relays Ice Cube Relays Series 9 -Series 781 &782

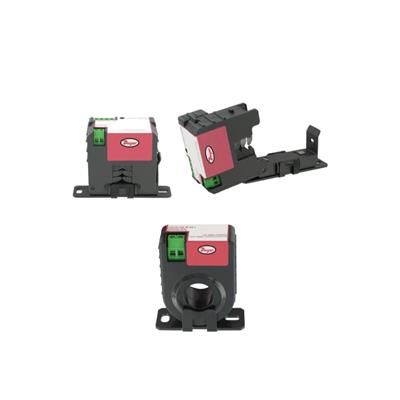

Current Switches Series SCS
