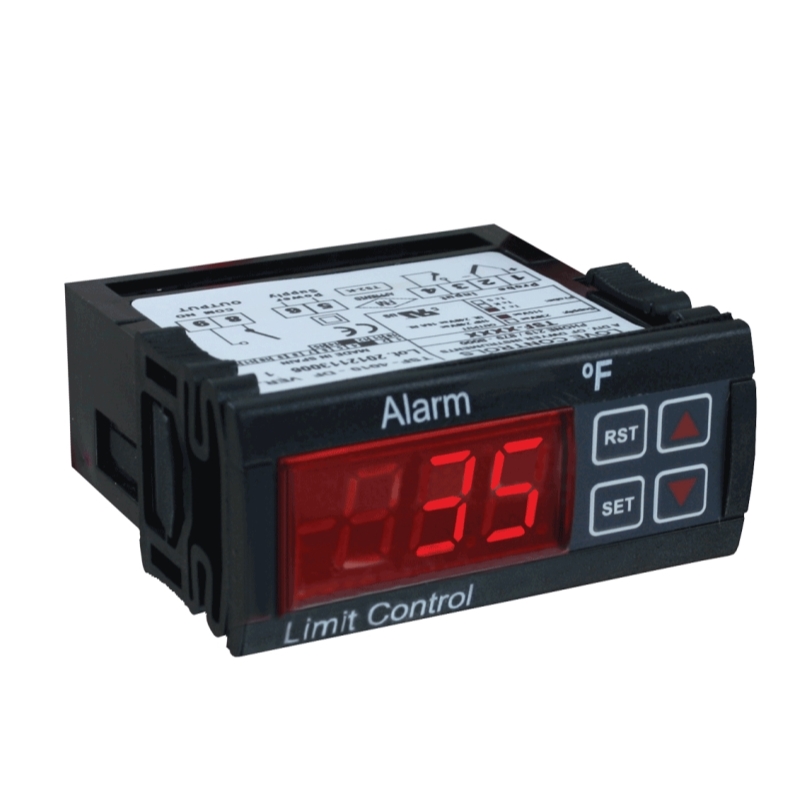

Thermocouple Limit Control Series TSF

Thermocouple Limit Control Series TSF - TSF-DF

Source of Supply: Directly imported by DLK TRADING SERVICE COMPANY LIMITED ⭐⭐⭐⭐⭐ Product Line: SERIES TSF_ TSF-DF✅ Certifications: FM💨 For Use: Khí⚙️ Product Type: Công tắc🔧 Functions: Đo nhiệt độ

ContactContact us for advice and quotes

Product information

🏭 Hãng sản xuất: DWYEROMEGA - Thương hiệu Mỹ

⭐ Dòng sản phẩm: SERIES TSF_ TSF-DF - Nhà máy tại: Mỹ

✅ Chứng nhận: FM 💨 Dùng cho: Khí

⚙️ Loại sản phẩm: Công tắc

🔧 Chức năng: Đo nhiệt độ

💵 Thuế VAT: Áp dụng mức 8% hoặc 10%, tùy theo chính sách hiện hành.
💰 Đơn vị tiền tệ: VND (Việt Nam Đồng).

🚚 Imported by bởi DLK TRADING SERVICE COMPANY LIMITED.
✅ Quality : Hàng mới 100%, đảm bảo chính hãng, đầy đủ hồ sơ nhập khẩu.
🛠️ Guarantee : 12 tháng, (tùy chọn 36 tháng).
📞 Phone : 0937972339

Technical characteristics
Name of the product
Standard technical document

SERIES TSF / TSF-DF	THERMOCOUPLE LIMIT CONTROL, THERMAL FLOW SWITCHES
Specification	Description
Series TSF/TSF-DF	Thermal Flow Switches
Service	Compatible liquids or gases.
Wetted Materials	316L SS.
Temperature Limits	Process: -40 to 250°F (-40 to 120°C) ; Ambient: -4 to 176°F (-20 to 80°C).
Pressure Limits	TSF: 1450 psi (100 bar); TSF-DF: 3600 psi (250 bar).
Switch Type	SPDT relay.
Electrical Rating	1A @ 30 VDC, 0.5A @ 125 VAC.
Power Requirements	24 VDC ±20%.
Power Consumption	3W.
Electrical Connection	Cable or M12 plug.
Process Connection	1/2" male NPT or 1/2" male BSPT, depending on model.
Enclosure Rating	NEMA 6P (IP67).
Mounting Orientation	Any position.
Set Point Adjustment	Via potentiometer.
Weight	0. 88 lb (0.4 kg).
Agency Approvals	CE.

Series TSF_MANUAL_DWYER_DLK.pdf
