Động cơ van gió Honeywell MS4104, MS4109, MS4604, MS4609, MS8104, MS8109

Liên hệLiên hệ với chúng tôi để được tư vấn và báo giá

Thông tin sản phẩm

Động cơ điều khiển van gió phản hồi bằng lò xo (Spring Return DCA), chuyên dụng cho hệ thống kiểm soát khói và hỏa hoạn với cơ chế đóng/mở nhanh 2 vị trí.

✔ Lực mô-men xoắn: 3.4 Nm (30 lb-in) cho dòng MSX104 hoặc 9 Nm (80 lb-in) cho dòng MSX109

✔ Nguồn điện cấp: 24 VAC (MS8104, MS8109), 120 VAC (MS4104, MS4109), 230 VAC (MS4604, MS4609)

✔ Tín hiệu điều khiển: 2-Vị trí (Đóng/Mở - SPST)

✔ Cơ chế an toàn: Lò xo hồi vị tích hợp đảm bảo thời gian đóng khẩn cấp trong 15 giây

🏭 ỨNG DỤNG (APPLICATIONS)

• Chuyên dụng cho hệ thống kiểm soát khói và ngăn lửa (Fire & Smoke)
• Đảm bảo vận hành tin cậy ở nhiệt độ lên đến 350°F (176°C) theo tiêu chuẩn UL555S
• Hệ thống sưởi, thông gió và điều hòa không khí (HVAC)
• Sử dụng cho các bộ xử lý không khí (AHU) và van gió thương mại

📥 TẢI CATALOG HONEYWELL MS4104-MS8109 (PDF)

Thẻ:

🚚 Nhập khẩu trực tiếp bởi DLK TRADING SERVICE COMPANY LIMITED.
✅ Chất lượng : Hàng mới 100%, đảm bảo chính hãng, đầy đủ hồ sơ nhập khẩu.
🛠️ Bảo hành : 12 tháng, (tùy chọn 36 tháng).
📞 Phone : 0937972339

Đặc tính kĩ thuật
Tên của sản phẩm
Tài liệu kĩ thuật hợp chuẩn

Đặc điểm nổi bật

Thiết kế chuyên dụng cho ứng dụng kiểm soát lửa và khói (Fire/Smoke), đạt chuẩn UL555S ở nhiệt độ 350°F (176°C).
Lực mô-men xoắn t&ối thiểu đạt 3.4 Nm (30 lb-in) cho dòng MSX104 hoặc 9 Nm (80 lb-in) cho dòng MSX109.
Lắp đặt đảo chiều linh hoạt, cho phép tùy chọn hướng quay lò xo thuận (CW) hoặc ngược chiều kim đồng hồ (CCW).
Cơ chế phản hồi lò xo tích hợp đảm bảo an toàn với thời gian đóng cực nhanh chỉ trong 15 giây.
Không phát ra tiếng ồn khi ở chế độ giữ (Holding), tạo môi trường vận hành êm ái.
Thiết kế tiết kiệm điện năng: Tự động giảm mức tiêu thụ điện khi đạt đến vị trí giữ mà không cần công tắc giới hạn.
Thân vỏ bằng nhôm đúc chắc chắn, tích hợp sẵn bộ tích hợp trục tự định tâm cho phép lắp đặt nhanh chóng.

Thông số kỹ thuật chi tiết

Thương hiệu	HONEYWELL
Loại động cơ	Phản hồi lò xo (Spring Return DCA)
Tín hiệu điều khiển	2-vị trí (On/Off - SPST)
Lực mô-men xoắn	3.4 Nm - 9 Nm (Tùy model)
Điện áp nguồn	24 VAC, 120 VAC, 230 VAC (Tùy model)
Thời gian phản hồi	Mở/Đóng lò xo: 15 giây
Góc quay tối đa	95° ± 3° [cite: 549]
Cấp bảo vệ vỏ	NEMA 1 / IP40
Nhiệt độ vận hành	0°F đến 130°F (-18°C đến 55°C)
Độ ồn khi hoạt động	Mở: 75 dBA \| Giữ: 20 dBA (Rất êm)
Tiêu chuẩn	UL873, UL555S, CE, C-Tick

🎥 Video Hướng Dẫn & Thực Tế

1. Honeywell MS8109F1010 Damper Actuator

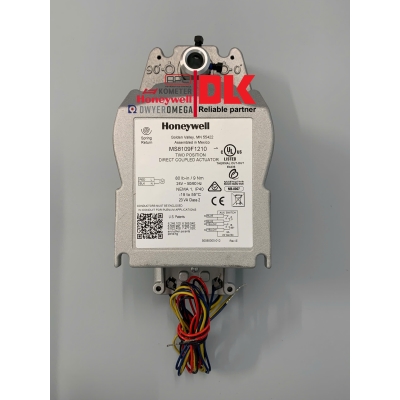

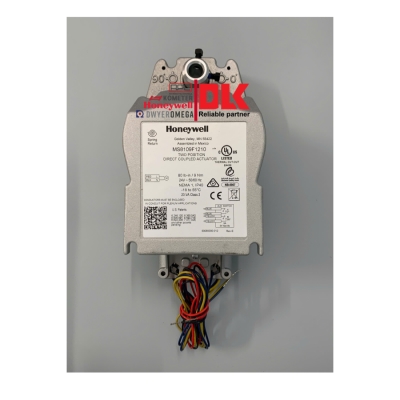

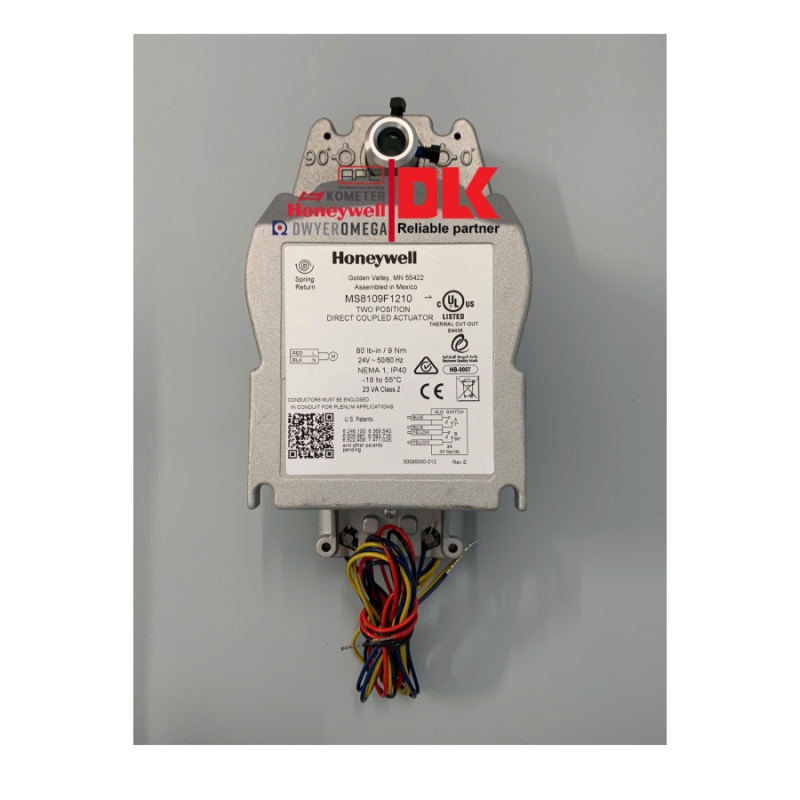

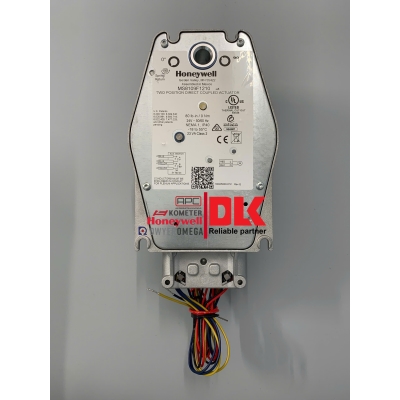

2. Honeywell MS8109F1210 Damper Actuator

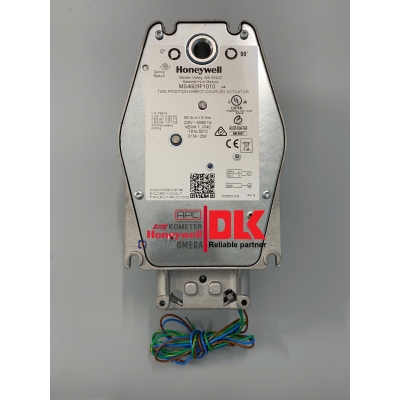

3. Honeywell MS4609F1010 Damper Actuator

4. Honeywell MS4609F1210 Damper Actuator

Model	Tên Hàng Hóa
MS4609F1010/B	Thiết bị dẫn động MS4609F1010/B - Actuator cho van gió loại 2 vị trí
MS4609F1210/B	Bộ dẫn động của van điều chỉnh lưu lượng gió, model MS4609F1210/B
MS4620F1005/B	Thiết bị dẫn động truyền lực cho van MS4620F1005/B
MS4620F1203/B	Bộ dẫn động của van điều chỉnh lưu lượng gió, model MS4620F1203/B
MS7510A2008	Bộ dẫn động của van điều chỉnh lưu lượng gió, model MS7510A2008
MS7510A2008/U	Bộ dẫn động của van điều chỉnh lưu lượng gió, model MS7510A2008/U
MS8109F1010/B	Bộ dẫn động của van điều chỉnh lưu lượng gió MS8109F1010/B
MS8109F1210/B	Bộ điều khiển dẫn động lưu lượng gió, model MS8109F1210/B
MS8120F1002/B	Bộ dẫn động của van điều chỉnh lưu lượng gió, model MS8120F1002/B
MS8120F1200/B	Bộ dẫn động của van điều chỉnh lưu lượng gió, model MS8120F1200/B

MS4104, MS4109, MS4604, MS4609, MS8104,

MS8109 Fast-Acting, Two-Position Actuators

FOR FIRE/SMOKE CONTROL APPLICATIONS

PRODUCT DATA

FEATURES

•

30 lb-in. (3.4 N•m) or 80 lb-in. (9 N•m) minimum

driving torque at 350°F (176°C).

Reversible mounting facilitates use in either

clockwise (cw) or counterclockwise (ccw) spring

rotation.

•

Integral spring return ensures level of return torque.

Fifteen-second spring return timing.

No special cycling required during long-term

holding. (See Operation section.)

•

No audible noise during holding.

Patent pending design eliminates need for limit

switches to reduce power consumption.

•

Models available for 24, 120, and 230 Vac.

Ninety-five degree angle of rotation.

Actuator holds rated torque at reduced power level.

Die-cast aluminum housing.

Housing design allows flush mounting to damper.

APPLICATION

Designed to operate reliably in smoke control

systems requiring Underwriter’s Laboratories Inc.

UL555S ratings up to 350°F.

The MS4104, MS4109, MS4604, MS4609, MS8104 and

MS8109 Fast-Acting, Two-Position Actuators are spring

return direct coupled actuators (DCA) for Fire and Smoke

dampers (on/off control). The actuator accepts an on/off

signal from a single-pole, single-throw (SPST) controller.

Reversible mounting allows actuator to be used for either

clockwise (cw) or counterclockwise (ccw) spring rotation.

•

Non-UL marked models available.

Models available with SPST position-indicating

switches (7°, 85° stroke).

Contents

Application .....................................................................................

Features ..........................................................................................

Specifications ...............................................................................

Ordering Information ................................................................

Installation ....................................................................................

Operation .......................................................................................

Checkout ........................................................................................

63-2740-11

MS4104, MS4109, MS4604, MS4609, MS8104, MS8109 FAST-ACTING, TWO-POSITION ACTUATORS

Mounting: Round 1/2 inch shaft adapter with 1/4 inch

SPECIFICATIONS

Models: See Table 1.

set screws.

Threads: ¼-20 UNC-2A

Material: Alloy Steel hardened to HRC 45-53

Thread Lock: Nylon Patch

Table 1. Models.

IMPORTANT

Voltage

(Vac)

Internal Auxiliary

Switches

Honeywell does not recommend using linkages

with these actuators because side-loading of the

output hub reduces actuator life.

Model

MS4104F1010

MS4104F1210

120

None

120

2 SPST

None

Temperature Ratings:

Ambient: 0°F to 130°F (-18°C to 55°C).

Shipping and Storage: -40°F to 140°F (-40°C to 60°C).

MS4109F1010

MS4109F1210

120

2 SPST

None

IMPORTANT

MS4604F1010

MS4604F1210

230

The actuator is designed to meet UL555S stan-

dards at 350°F (176°C) on applicable marked

models. The actuator must be tested with the

damper to achieve this rating.

2 SPST

None

MS4609F1010

MS4609F1210

230

2 SPST

None

Humidity Ratings: 5% to 95% RH noncondensing.

MS8104F1010

MS8104F1210

Noise Rating (Maximum):

2 SPST

None

Driving Open: 75 dBA at 1m.

MS8109F1010

MS8109F1210

Holding: 20 dBA at 1m (no audible noise).

2 SPST

Controller Type:

MS4104, MS4109: Line voltage (120 Vac),

two-position, SPST (Series 40).

MS4604, MS4609: Line voltage (230 Vac),

two-position, SPST (Series 40).

MS8104, MS8109: Low voltage (24 Vac),

two-position, SPST (Series 80).

Product model numbers with ‘NM’ at the end do not con-

tain an UL listing or marking. Check with local codes and

authority having jurisdiction prior to commissioning this

product type.

Internal switches are designed to pass UL555S

requirements (at 350°F for 30 minutes) and are intended

for use as position indication, if applicable.

Table 2. MS4104, MS4109, MS4604, MS4609, MS8104

and MS8109 DCA Models.

Dimensions: See Fig. 1.

Power Consumption

Torque

in lb-in.

(N•m)

Voltage

Input

Minimum Damper Shaft Length: 2 in. (51 mm).

Device Weight: 5 lb (2.3 kg).

Model

Running Holding

in Vac

MS4104F 0.18A, 18W 0.11A,

30 (3.4) 120 10%,

50/60 Hz

Stroke: 95° 3°, mechanically limited.

Electrical Ratings: See Table 2.

MS4109F 0.25A, 23W 0.13A,

80 (9)

Electrical Connections:

Power Lead Wires:

MS4604F 0.13A, 18W 0.10A,

11W

30 (3.4) 230 10%,

50/60 Hz

MS410xF and MS460xF: 32 inches (0.8m), 18 AWG

MS810xF: 39 inches (1m), 18 AWG

MS4609F 0.13A, 23W 0.09A,

80 (9)

Switch Lead Wires: 18 inches, 18 AWG, 2 color coded

MS8104F 16 VA

MS8109F 23 VA

8 VA

7 VA

30 (3.4) 24Vac/dc

leads

+20%, -10%,

50/60 Hz

80 (9)

ORDERING INFORMATION

When purchasing replacement and modernization products from your TRADELINE® wholesaler or distributor, refer to the

TRADELINE® Catalog or price sheets for complete ordering number. If you have additional questions, need further

information, or would like to comment on our products or services, please write or phone:

1. Your local Honeywell Environmental and Combustion Controls Sales Office (check white pages of your phone

directory).

2. Honeywell Customer Care

1985 Douglas Drive North

Golden Valley, Minnesota 55422-4386

3. http://customer.honeywell.com or http://customer.honeywell.ca

International Sales and Service Offices in all principal cities of the world. Manufacturing in Belgium, Canada, China,

Czech Republic, Germany, Hungary, Italy, Mexico, Netherlands, United Kingdom, and United States.

63-2740—11

MS4104, MS4109, MS4604, MS4609, MS8104, MS8109 FAST-ACTING, TWO-POSITION ACTUATORS

Torque Rating (at rated voltage):

Table 3. Approvals.

Spring Return:

MS4104F,

MS4109F

MS4604F,

MS4609F

MS8104F,

MS8109F

MS4104F, MS4604F, MS8104F: 30 lb-in. (3.4 N•m).

MS4109F, MS4609F, MS8109: 80 lb-in. (9 N•m).

Stall Maximum:

UL/cUL (optional)

UL60730 (optional)

MS4104F, MS4604F, MS8104F: 150 lb-in. (17 N•m).

MS4109F, MS4609F, MS8109: 240 lb-in. (27 N•m).

350°F Driving:

MS4104F, MS4604F, MS8104F: 30 lb-in. (3.4 N•m).

MS4109F, MS4609F, MS8109: 80 lb-in. (9 N•m).

C-Tick

Table 4. Environmental Ratings.

Timing (At Rated Torque and Voltage):

Drive Open: 15 seconds typical.

MS4104, MS4109,

Spring Close: 15 seconds typical.

MS4604, MS4609, MS8104

and MS8109

All Devices

Auxiliary Switches:

Ratings (maximum load):

NEMA1

IP40

•MS4104F, MS4604F, MS4109F, MS4609F:

125 Vac/24Vdc, 3A resistive

2 (51)

1 (25)

•MS8104F, MS8109F:

24 Vac/24 Vdc, 3A resistive

11/16

(17)

Settings (fixed): 7° nominal stroke, 85° nominal stroke

90^°

0^°

Cycling Requirements:

6-3/8

(161)

The actuator and the internal spring are designed to

require no special cycling during long-term holding.

Honeywell recommends following all local, state and

national codes for periodic testing of the entire smoke

control system. Refer to National Fire Protection Associ-

ation (NFPA) National Fire Codes®: NFPA90A, NFPA92A

and NFPA92B for your application.

NFPA recommends periodic examination of each

fire/smoke damper (semi-annually or annually) to

ensure proper performance.

Design Life (at Rated Voltage): 30,000 full stroke cycles.

Approvals: See Table 3.

8-15/16

(227)

2 (51)

3-1/4 (83)

1/16

(2)

Environmental Protection Ratings: See Table 4.

4 (102)

Accessories:

205649 Mounting Bracket (supplied with actuator).

32003168-004 Shaft Adapter Extension.

50006427-001 Flexible Anti-Rotation Bracket.

9/16 (14)

5-1/8 (130)

M34622

Fig. 1. MS4104, MS4109, MS4604, MS4609, MS8104 and

MS8109 dimensional drawing in in. (mm).

63-2740—11

MS4104, MS4109, MS4604, MS4609, MS8104, MS8109 FAST-ACTING, TWO-POSITION ACTUATORS

INSTALLATION

When Installing this Product...

1. Read these instructions carefully. Failure to follow

them could damage the product or cause a hazard-

ous condition.

2. Check the ratings given in the instructions and on the

product to make sure the product is suitable for your

application.

3. Installer must be a trained, experienced service

technician.

4. After installation is complete, check out product

operation as provided in these instructions.

IMPORTANT

All wiring must agree with applicable codes,

ordinances and regulations.

WARNING

Electrical Power Hazard.

Line voltage can cause death or serious injury

and short equipment circuitry.

Disconnect power supply before installation.

ENSURE THAT MOUNTING ASSEMBLY PREVENTS ACTUATOR

ROTATION AND ALLOWS ACTUATOR TO FLOAT ALONG INDICATED

AXIS. WHEN TOO TIGHT, THE RESULTING BINDING CAN DAMAGE

THE ACTUATOR OR REDUCE TORQUE OUTPUT.

CAUTION

Electrical Shock or Equipment Damage Hazard.

Low voltage can shock individuals or short

equipment circuitry.

M34623A

Disconnect power supply before installation.

Fig. 2. Mounting actuator to damper housing.

Location and Mounting

Preparation

The actuators are designed to open a damper by driving

Before mounting the actuator onto the damper shaft,

determine the:

the damper shaft in either clockwise

counterclockwise

direction. The actuator housing has

—

Damper/valve opening direction for correct spring

return rotation. The actuator can be mounted to

provide clockwise or counterclockwise spring

return.

two slots on the bottom that, with a 205649 Mounting

Bracket, secure it flush to a damper box (see Fig. 2). When

mounted correctly, these slots allow the actuator to float

without rotating relative to the damper shaft.

—

Damper shaft size (see Specifications section).

CAUTION

Equipment Damage Hazard.

Tightly securing actuator to damper housing can

damage actuator.

Mount actuator to allow it to float along its vertical

axis.

63-2740—11

MS4104, MS4109, MS4604, MS4609, MS8104, MS8109 FAST-ACTING, TWO-POSITION ACTUATORS

IMPORTANT

Installation

1. All wiring must comply with local electrical codes,

ordinances and regulations.

2. Voltage and frequency of transformer must corre-

spond with the characteristics of power supply and

CAUTION

Device Malfunction Hazard.

actuator.

Improper set screw tightening causes device

malfunction.

3. Use wires rated for at least 75°C (167°F).

4. The conduit fittings are designed for use with 3/8

in. reduced-wall steel or aluminum flexible conduit.

Ensure damper blade is in the correct position and

tighten set screws with proper torque to prevent

damper shaft slippage.

(

)

BLACK

RED

24 VAC

CAUTION

(

)

Actuator Damage Hazard.

Using actuator as shaft bearing causes device

damage.

Use actuator only to supply rotational torque. Avoid

any side loads to actuator output coupling bearings.

BLUE

7° AUXILIARY

SWITCH

BLUE

YELLOW

To install actuator, proceed as follows:

1. Place actuator over damper shaft; and hold mounting

bracket in place. See Fig. 2.

85° AUXILIARY

SWITCH

2. Mark screw holes on damper housing.

3. Remove actuator and mounting bracket.

4. Drill or center-punch holes for mounting screws (or

use no.10 self-tapping sheet metal screws).

5. Turn damper blades to desired normal (closed) posi-

tion.

6. Place actuator and mounting bracket back into posi-

tion and secure bracket to damper box with sheet

metal screws.

M34624

Fig. 3. Typical 24 Vac wiring.

(

)

WHITE

BLACK

GREEN

120 VAC

(

)

7. Tighten set screws securely into damper shaft using

minimum 100 lb-in., maximum 130 lb-in. torque. Use

1/4 in. wrench (see Specifications for details) to

tighten set screws.

BLUE

7° AUXILIARY

SWITCH

BLUE

YELLOW

85° AUXILIARY

SWITCH

Wiring

See Fig. 3 through 5 for typical wiring diagrams.

M34625

Fig. 4. Typical 120 Vac wiring.

WARNING

Electrical Power Hazard.

Line voltage can cause death or serious injury and

short equipment circuitry.

(

)

BLUE

Disconnect power supply before installation.

230 VAC

BROWN

GREEN

(

)

CAUTION

Electrical Shock or Equipment Damage Hazard.

Low voltage can shock individuals or short

equipment circuitry.

BLUE

7° AUXILIARY

SWITCH

BLUE

YELLOW

Disconnect power supply before installation.

85° AUXILIARY

SWITCH

M34626

Fig. 5. Typical 230 Vac wiring.

63-2740—11

OPERATION

CHECKOUT

The MS4104, MS4109, MS4604, MS4609, MS8104 and

MS8109 DCA are designed for use in Smoke Control

Systems. If power fails, the actuator spring returns to the 0°

position. The actuator mounts flush with the damper box.

The actuator drives from 0° to 95° and spring returns back

to 0°.

MS4104F, MS4109F (120 Vac

model)

1. Check damper position.

2. Connect 120 Vac to the black and white leadwires to

drive the damper to the open position. The actuator

should drive the damper.

3. If the actuator does not spring return, verify that the

actuator is properly installed. See Installation sec-

tion.

4. If the actuator is correctly installed but neither runs

nor spring returns, replace the actuator.

The actuators are operated by an spst two-position

controller. When using an spst two-position controller, the

actuator drives to the damper fully open position when

controller contact makes and spring returns to the damper

fully closed position when controller contact breaks. The

actuator drops to holding power level on detection of stall,

independent of hub position.

MS4604F, MS4609F (230 Vac

model)

Cycling

The actuator and the internal spring are designed so that

no special cycling during long-term holding is required.

Honeywell recommends following all local, state, and

national codes for periodic testing of the entire smoke

control system. Refer to National Fire Protection

1. Check damper position.

2. Connect 230 Vac to the blue and brown leadwires to

drive the damper to the open position. The actuator

should drive the damper.

3. If the actuator does not spring return, verify that the

actuator is properly installed. See Installation sec-

tion.

4. If the actuator is correctly installed but neither runs

nor spring returns, replace the actuator.

Association (NFPA) National Fire Codes : NFPA90A,

NFPA92A, and NFPA92B for your application.

NOTE: The actuator is designed to operate for 30 minutes

during a one-time excursion to 350°F (176°C).

MS8104F, MS8109F (24 Vac model)

1. Check damper position.

2. Connect 24 Vac to the red and black leadwires to

drive the damper to the open position. The actuator

should drive the damper.

3. If the actuator does not spring return, verify that the

actuator is properly installed. See Installation sec-

tion.

4. If the actuator is correctly installed but neither runs

nor spring returns, replace the actuator.

National Fire Codes is a registered trademark of the National Fire Protection Association (NFPA).

63-2740—11

By using this Honeywell literature, you agree that Honeywell will have no liability for any damages arising out of your use or

modification to, the literature. You will defend and indemnify Honeywell, its affiliates and subsidiaries, from and against any

liability, cost, or damages, including attorneys’ fees, arising out of, or resulting from, any modification to the literature by you.

Home and Building Technologies

In the U.S.:

Honeywell

715 Peachtree Street NE

® U.S. Registered Trademark

63-2740—11 M.S. Rev. 02-18

Printed in United States

Atlanta, GA 30308

customer.honeywell.com

Động cơ van gió Honeywell MS4104, MS4109, MS4604, MS4609, MS8104, MS8109
