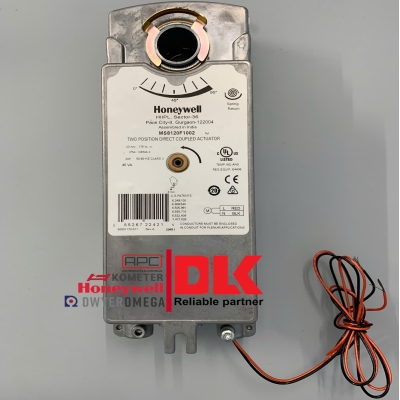

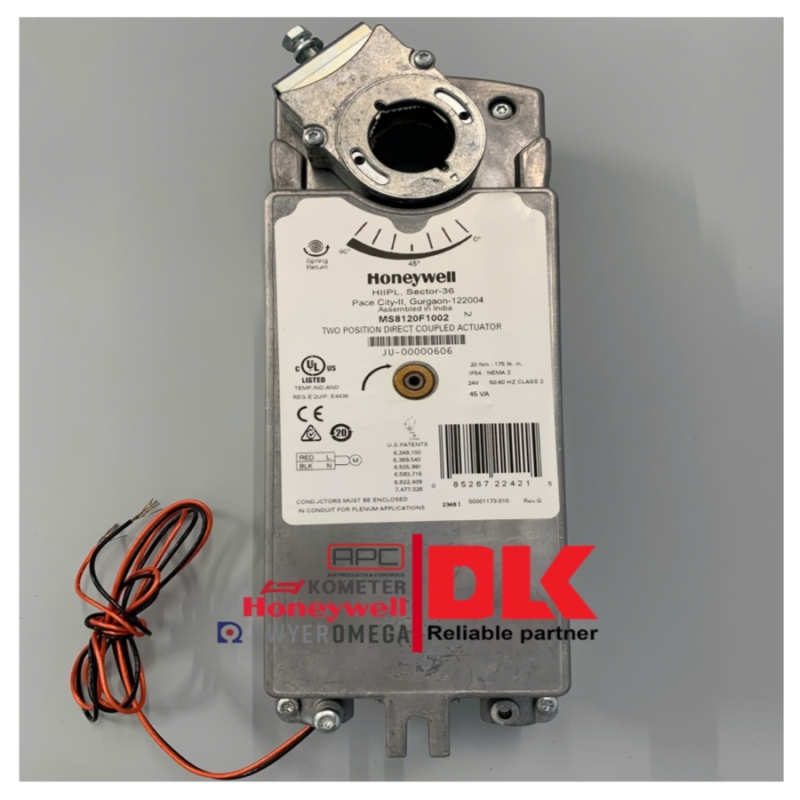

Spring return fire damper actuator 20Nm, 24V MS8120F1002/B

Source of Supply: Directly imported by DLK TRADING SERVICE COMPANY LIMITED ⭐⭐⭐⭐⭐ Product Line: MS8120F1002/B✅ Certifications: UL💨 For Use: Khí⚙️ Product Type: Động Cơ🔧 Functions: Giám sát lưu lượng

ContactContact us for advice and quotes

Product information

🏭 Hãng sản xuất: HONEYWELL- Thương hiệu Mỹ

⭐ Dòng sản phẩm: MS8120F1002/B - Nhà máy tại: Mexico hoặc Ấn độ

✅ Chứng nhận: UL 💨 Dùng cho: Khí

⚙️ Loại sản phẩm: Động Cơ

🔧 Chức năng: Giám sát lưu lượng

💵 Thuế VAT: Áp dụng mức 8% hoặc 10%, tùy theo chính sách hiện hành.
💰 Đơn vị tiền tệ: VND (Việt Nam Đồng).

Tags:

🚚 Direct Importer by DLK TRADING SERVICE COMPANY LIMITED .
✅ Quality : 100% Brand New , genuine products with complete import documentation.
🛠️ Warranty : 12 Months (optional 36 Months ).
📞 Phone : 0937972339

Technical characteristics
Name of the product
Standard technical document

Specification	Description
Series MS	Spring Return Direct Coupled Actuators (MS4104F, MS4109F, MS4604F, MS4609F, MS8104F, MS8109F)
Models and Variations	See Table 1 (below). Includes models with and without internal auxiliary switches. Voltage options: 120 Vac, 230 Vac, and 24 Vac/dc.
Table 1: Models	Model
Mounting	Round 1/2 inch shaft adapter with 1/4 inch set screws.
Threads (Set Screws)	14-20 UNC-2A; Material: Alloy Steel hardened to HRC 45-53; Thread Lock: Nylon Patch.
Temperature Ratings	Ambient: 0°F to 130°F (-18°C to 55°C); Shipping and Storage: -40°F to 140°F (-40°C to 60°C').
Important Note (UL555S)	The actuator is designed to meet UL555S standards (350°F (176°C)). The actuator must be tested with the damper to achieve this rating.
Humidity Ratings	5% to 95% RH non-condensing.
Noise Rating (Maximum)	Driving Open: 75 dBA at 1m; Holding: 20 dBA at 1m (no audible noise).
Controller Type	MS4104, MS4109: Line voltage (120 Vac), two-position, SPST (Series 40); MS4604, MS4609: Line voltage (230 Vac), two-position, SPST (Series 40); MS8104, MS8109: Low voltage (24 Vac), two-position, SPST (Series 80).
Dimensions	See Fig. 1. (Note: We don't have Fig. 1, so dimensions are unknown.)
Minimum Damper Shaft Length	2 in. (51 mm).
Device Weight	5 lb (2.3 kg).
Stroke	95° ± 3° mechanically limited.
Electrical Ratings	See Table 2 (below).
Electrical Connections	Power Lead Wires: MS410xF and MS460xF: 32 inches (0.8m), 18 AWG; MS810xF: 39 inches (1m), 18 AWG; Switch Lead Wires (if applicable): 18 inches, 18 AWG, 2 color coded leads.
Table 2: Electrical Ratings	Model
Important Note (linkages)	Honeywell does not recommend using linkages with these actuators because side-loading of the output hub reduces actuator life.
Auxiliary Switches Note	Internal switches are designed to pass UL555S requirements (at 350°F for 30 minutes) and are intended for use as position indication.
