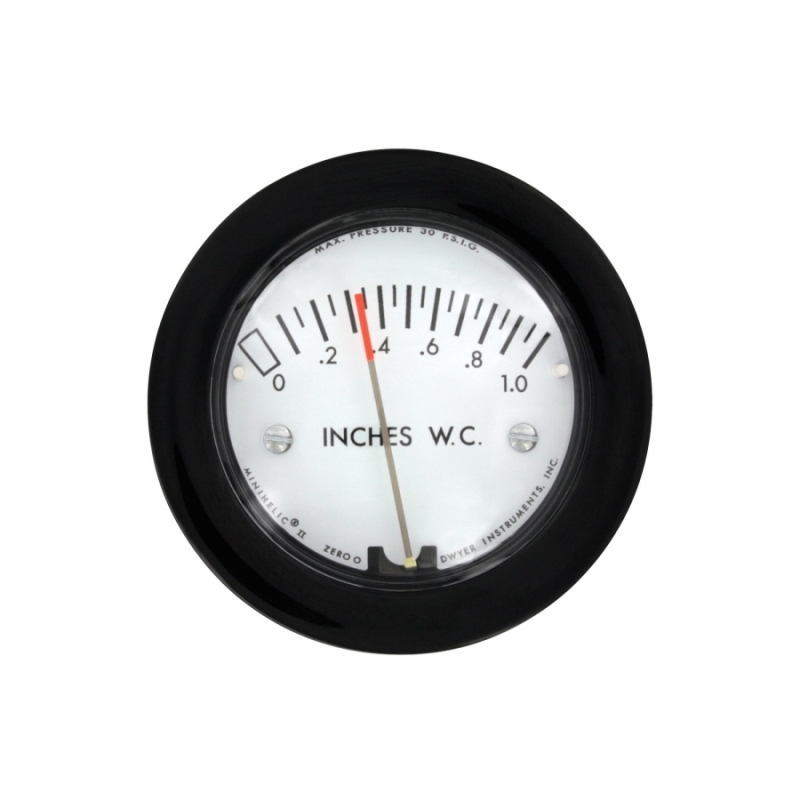

Đồng Hồ Đo Chênh Áp Suất Dwyer Series 2-5000
Giá bán:
Contact
Product information
Series 2-5000 Photohelic® Pressure Switch/Gage combines the versatile Magnehelic® differential pressure gage with dual-setpoint pressure switches, offering high-precision monitoring and control for industrial environments.
✔ 2-in-1 Design: Provides simultaneous visual indication and electrical switching control through dual setpoints
✔ High Accuracy: Features ±2% full scale accuracy for reliable performance in cleanrooms and AHU systems
✔ Relay Output: Built-in DPDT relays for direct control of fans, filters, or safety alarm systems
✔ Flexible Setup: Front-facing adjustment knobs allow easy configuration of pressure threshold settings
✔ Key Applications: Ideal for stairwell pressurization, room pressure control, and filter status monitoring
Tags:
-
🚚 Imported by bởi DLK TRADING SERVICE COMPANY LIMITED.
-
✅ Quality : Hàng mới 100%, đảm bảo chính hãng, đầy đủ hồ sơ nhập khẩu.
-
🛠️ Guarantee : 12 tháng, (tùy chọn 36 tháng).
-
📞 Phone : 0937972339
Cam kết sản phẩm
- Technical characteristics
- Name of the product
- Standard technical document
Detailed Specifications
|
Brand |
DWYER (USA) |
|
Service |
Air and non-combustible, compatible gases |
|
Accuracy |
±5% of FS @ 70°F (21.1°C) |
|
Pressure Limits |
30 psig (2.067 bar) |
|
Temperature Limits |
20 to 120°F (-6.7 to 48.9°C) |
|

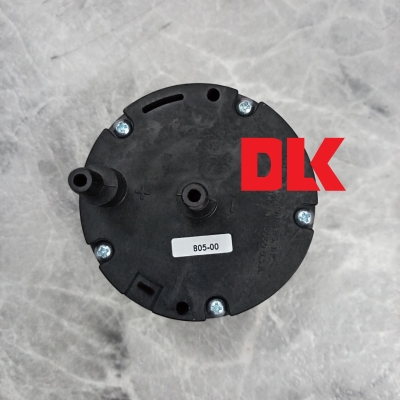

Process Connections |
Barbed for 3/16" ID tubing; optional 1/8" male NPT |
|
Dial Size |
2-1/16" (52.39 mm) |
|
Switch Type |
Two SPDT relays (Form C) |
|
Electrical Rating |
5A @ 120/240 VAC; 5A @ 30 VDC |
|
Power Requirements |
24 VDC, regulated ±10% |
Series 2-5000 Model Chart
|
Model |
Operating Range |
Model |
Operating Range |
|
2-5000-0 |
0-0.5 in w.c. |
2-5010 |
0-10 in w.c. |
|
2-5001 |
0-1.0 in w.c. |
2-5020 |
0-20 in w.c. |
|
2-5002 |
0-2.0 in w.c. |
2-5040 |
0-40 in w.c. |
|
2-5003 |
0-3.0 in w.c. |
2-5060 |
0-60 in w.c. |
|
2-5005 |
0-5.0 in w.c. |
2-5100 |
0-100 in w.c. |
|

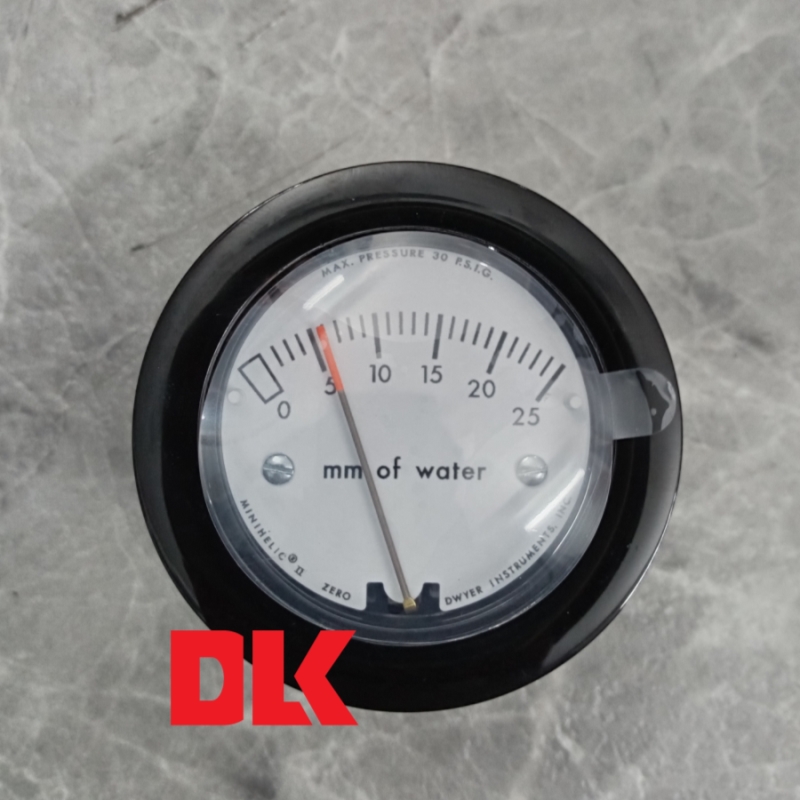

2-5000-25MM |
0-25 mm w.c. |
2-5000-125PA |
0-125 Pa |
|
2-5000-50MM |
0-50 mm w.c. |
2-5000-250PA |
0-250 Pa |
|
2-5000-100MM |
0-100 mm w.c. |
2-5000-500PA |
0-500 Pa |
|
2-5000-1KPA |
0-1 kPa |
2-5000-3KPA |
0-3 kPa |
|
2-5205 |
0-5 psi |
|
📂 Danh mục tài liệu đi kèm
Mã SP:SERIES 2-5000
Quy cách:
Tình trạng:
Price:
0703570101
Series 2-5000, 2-5000-0, 2-5001, 2-5002, 2-5003, 2-5005, 2-5010, 2-5020, 2-5040, 2-5060, 2-5100, 2-5000-25MM, 2-5000-50MM, 2-5000-100MM, 2-5000-125PA, 2-5000-250PA, 2-5000-500PA, 2-5000-1KPA, 2-5000-3KPA, 2-5205
