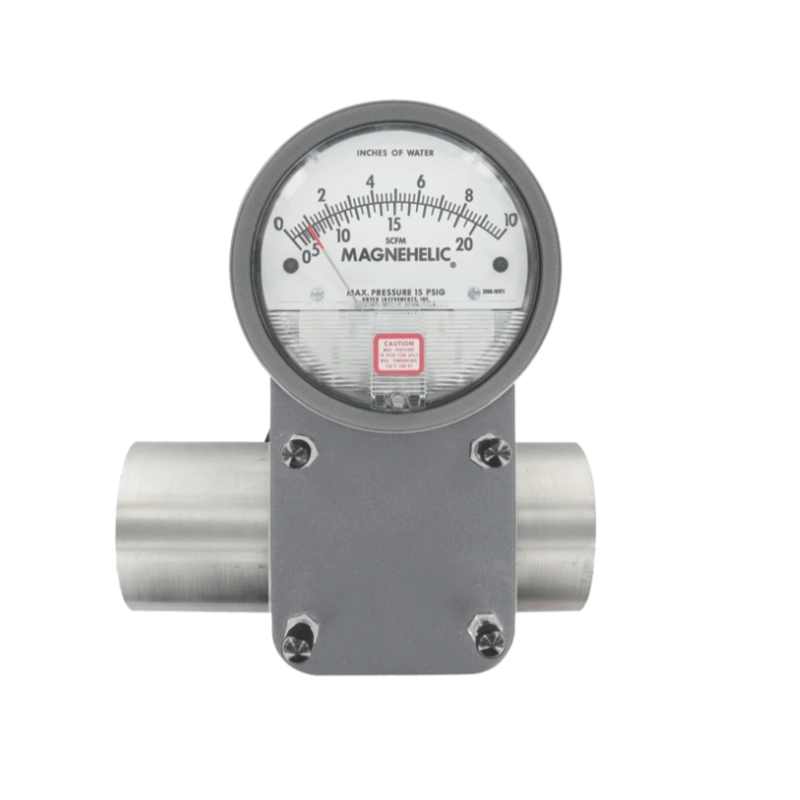

Venturi Flowmeter With Magnehelic® Gage Series VFLO

Source of Supply: Directly imported by DLK TRADING SERVICE COMPANY LIMITED ⭐⭐⭐⭐⭐ Product Line: SERIES VFLO✅ Certifications: 💨 For Use: Chất Lỏng⚙️ Product Type: Đồng hồ🔧 Functions: Giám sát lưu lượng

ContactContact us for advice and quotes

Product information

🏭 Hãng sản xuất: DWYEROMEGA - Thương hiệu Mỹ

⭐ Dòng sản phẩm: SERIES VFLO - Nhà máy tại: Mỹ

✅ Chứng nhận: 💨 Dùng cho: Chất Lỏng

⚙️ Loại sản phẩm: Đồng hồ

🔧 Chức năng: Giám sát lưu lượng

💵 Thuế VAT: Áp dụng mức 8% hoặc 10%, tùy theo chính sách hiện hành.
💰 Đơn vị tiền tệ: VND (Việt Nam Đồng).

🚚 Imported by bởi DLK TRADING SERVICE COMPANY LIMITED.
✅ Quality : Hàng mới 100%, đảm bảo chính hãng, đầy đủ hồ sơ nhập khẩu.
🛠️ Guarantee : 12 tháng, (tùy chọn 36 tháng).
📞 Phone : 0937972339

Technical characteristics
Name of the product
Standard technical document

SERIES VFLO	VENTURI FLOWMETER WITH MAGNEHELIC® GAGE
Specification	Description
Series VFLO	Vane Operated Flow Switch
Service	Compatible gases or liquids.
Wetted Materials	Vane: 301 SS; Body: Brass or 316 SS; Pin: 301 SS, 302 SS; Magnet: Ceramic; Other: 301 SS, 302 SS, 316 SS.
Temperature Limits	-4 to 275°F (-20 to 135°C) standard, MT high temperature option 400°F (205°C) (MT not UL, CSA, ATEX, IECEx, or KC). ATEX and IECEx option, ambient temperature -4 to 163°F (-20 to 73°C); process temperature: -4 to 163°F (-20 to 73°C) (-4 to 275°F (-20 to 135°C) with ATEX/IECEx options A, B, D.)
Pressure Limits	Brass body: 1000 psig (69 bar), 316 SS body: 2000 psig (138 bar), optional 5000 psig (345 bar) available with 316 SS body.
Enclosure Rating	Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G.1 ATEX, IECEx, and KC options also available.
Switch Type	SPDT snap switch standard, DPDT snap switch optional.
Electrical Rating	UL models: 5A @ 125/250 VAC (V~). CSA, ATEX, IECEx, and KC models: 5A @ 125/250 VAC (V~); 5A res., 3A ind. @ 30 VDC. MV option: 1A @ 125 VAC; 1A res., .5A ind. @ 30 VDC. MT option: 5 A @ 125/250 VAC (V~).
Electrical Connections	Screw terminal block.
Conduit Connection	3/4" female NPT.
Process Connection	1" male NPT.
Mounting Orientation	Within 5° of vertical, for horizontal pipe runs.
Set Point Adjustment	Vane is trimmable. Specific set points depend on model and pipe size.
Weight	2 lb, 1 oz (935.5 g).
Agency Approvals	UL, CSA, FM, ATEX, IECEx, KOSHA, CE. (See catalog page for specific model/option approvals).

Series VFLO_MANUAL_DWYER_DLK.pdf
