Product information

The Series DHC Digihelic® Digital Differential Pressure Controller is a highly versatile 3-in-1 instrument that combines a digital display gage, control switch, and transmitter in a rugged die-cast aluminum enclosure. With its graphical LCD displaying pressure, velocity, and flow simultaneously, it provides the ultimate solution for precise monitoring and control in HVAC and cleanroom applications.

✔ 3-in-1 Instrument: Simultaneously replaces a mechanical gage, a pressure switch, and a 4-20 mA transmitter
✔ Smart Communication: Built-in Modbus® RTU protocol for seamless direct integration with BMS/SCADA systems
✔ Superior Accuracy: Low ±0.5% FS error ensures precise control for cleanroom pressure and air flow monitoring
✔ Graphical LCD Interface: Backlit multi-line display clearly shows units, relay status, and pressure bar graphs
✔ Industrial Ruggedness: Die-cast aluminum housing with IP66 rating protection against dust and water ingress



Tags:
  • 🚚 Imported by bởi  DLK TRADING SERVICE COMPANY LIMITED.
  • ✅ Quality  : Hàng mới 100%, đảm bảo chính hãng, đầy đủ hồ sơ nhập khẩu.
  • 🛠️ Guarantee     : 12 tháng, (tùy chọn 36 tháng).
  • 📞 Phone          : 0937972339
  • Technical characteristics
  • Name of the product
  • Standard technical document

Detailed Specifications

Brand DWYER (USA)
Accuracy ±0.5% FS (±1.5% for low ranges 0.25" and 0.5" w.c.)
Output Signal 4-20 mA and Modbus® RTU
Relay Contacts 2 SPDT relays (1A @ 30 VDC/VAC)
Power Requirements 12-28 VDC or 12-28 VAC
Protection Rating IP66 for front face (NEMA 4X)

Dwyer Series DHC Model Selection Chart

Model Range Model Range
DHC-002 0.25 in w.c. DHC-208 ±5 in w.c.
DHC-003 0.5 in w.c. DHC-209 ±10 in w.c.
DHC-004 1 in w.c. DHC-053 60 Pa
DHC-006 2.5 in w.c. DHC-055 125 Pa
DHC-008 5 in w.c. DHC-056 250 Pa
DHC-009 10 in w.c. DHC-253 ±60 Pa
DHC-010 25 in w.c. DHC-255 ±125 Pa
DHC-011 50 in w.c. DHC-256 ±250 Pa
DHC-012 100 in w.c. DHC-082 6 mm w.c.
DHC-202 ±0.25 in w.c. DHC-084 25 mm w.c.
DHC-203 ±0.5 in w.c. DHC-282 ±6 mm w.c.
DHC-204 ±1 in w.c. DHC-284 ±25 mm w.c.
DHC-206 ±2.5 in w.c.

DHC_CATALOG_DWYER_DLK.pdf
DHC_MANUAL_DWYER_DLK.pdf
DHC_DATASHEET_DWYER_DLK.pdf



OTHER PRODUCT

THERMOSTAT Honeywell Series TFM228 _TFM428

THERMOSTAT Honeywell Series TFM228 _TFM428

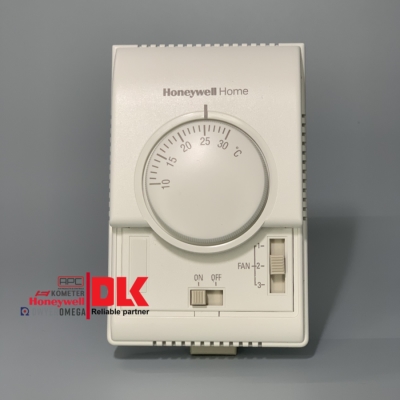

THERMOSTAT Honeywell Series T6372_T6373
